DIN334c Cylindrical Shank 60 Degree 3 Flutes HSS Chamfer Countersink Drill Bit

Material: HSS

Shank: Straight Shank / Taper Shank

Point Angle60/90/120 Degree

Certification: BSCI / CE / ROHS/ ISO

MOQ: 100PCS

Size: 4.5-80mm

Plastic box packing


Product Detail

DIN334C

FEATURES

1. 60 Degree Angle: The 60-degree chamfer angle provides a standard chamfer that is commonly used in many applications. It allows for precise and consistent chamfering of edges, creating clean and professional finishes.

2. Three Flutes: The drill bit features three flutes, which improves chip evacuation during drilling and countersinking. The flutes help remove debris efficiently, preventing clogging and ensuring smooth and accurate drilling operations.

3. Versatility: The 60-degree 3-flute chamfer countersink drill bit is suitable for use on various materials, including wood, plastic, and soft metals. It can be used in woodworking, metalworking, and general construction projects.

4. Multi-purpose Design: This drill bit is designed for both drilling and countersinking operations. It allows you to drill a pilot hole and create a countersunk recess in one step, saving time and effort.

5. Adjustable Depth: The drill bit allows for adjustable countersink depth. This feature enables you to create different-sized recesses according to your specific requirements.

6. Precision and Accuracy: The drill bit's design ensures precise and accurate drilling and countersinking results. It helps prevent deviations and enhances the overall quality of the finished chamfer or countersunk hole.

7. Professional Finishes: The chamfering and countersinking capabilities of this drill bit allow you to achieve professional-grade finishes on your workpieces. It adds a professional touch to woodworking projects, metalwork, and other applications.

8. Cost-effective: The 60 Degree 3 Flutes HSS Chamfer Countersink Drill Bit offers an affordable solution for chamfering and countersinking needs. It provides reliable performance and durability, making it a cost-effective choice compared to specialized tools.

DIN334C HSS countersink

DIN334C HSS countersink (5)

Advantages

1. Versatility: This drill bit can be used on a variety of materials, including wood, plastic, and soft metals. This makes it useful for a wide range of applications, from woodworking to metalworking.

2. Precise Chamfering: The 60-degree angle of the drill bit allows for precise and consistent chamfering of edges. This helps create clean and professional finishes on workpieces.

3. Efficient Chip Evacuation: The three flutes on the drill bit help with efficient chip evacuation during the drilling process. This helps prevent clogging and ensures smooth and accurate drilling operations.

4. Durable Construction: The drill bit is made from high-speed steel, which offers excellent durability and heat resistance. This allows it to maintain its performance even when used on tough materials or in high-temperature conditions.

5. Adjustable Depth: The drill bit allows for adjustable countersink depth, giving you flexibility in creating different-sized recesses based on your specific requirements.

6. Compatibility: The drill bit typically comes with a standard shank size that is compatible with most drill chucks and quick-change systems. This ensures easy and secure tool changes, improving efficiency in your work.


  • Previous:
  • Next:

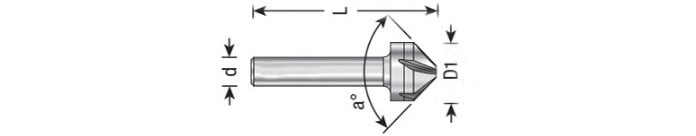

  • DIN334C1

    D1 L d D1 L d
    mm mm mm mm mm mm
    4.3 40.0 4.0 12.4 56.0 8.0
    4.8 40.0 4.0 13.4 56.0 8.0
    5.0 40.0 4.0 15.0 60.0 10.0
    5.3 40.0 4.0 16.5 60.0 8.0
    5.8 45.0 5.0 16.5 60.0 10.0
    6.0 45.0 5.0 19.0 63.0 10.0
    6.3 45.0 5.0 20.5 63.0 10.0
    7.0 50.0 6.0 23.0 67.0 10.0
    7.3 50.0 6.0 25.0 67.0 10.0
    8.0 50.0 6.0 26.0 71.0 12.0
    8.3 50.0 6.0 28.0 71.0 12.0
    9.4 50.0 6.0 30.0 71.0 12.0
    10.0 50.0 6.0 31.0 71.0 12.0
    10.4 50.0 6.0 37.0 90.0 12.0
    11.5 56.0 8.0 40.0 80.0 15.0
