High Quality HSS Step Drill Bit with Spiral Flute

Size: 4-12mm, 4-20mm, 4-32mm

Material: HSS or Cobalt M35, HIGH SPEED STEEL

Flute Type: Spiral Flutes

Surface Finish: Bright

Application: Steel, Brass, Copper, Aluminium, Wood and Plastic Material

Send email to us

Product Detail

hss step drill sizes

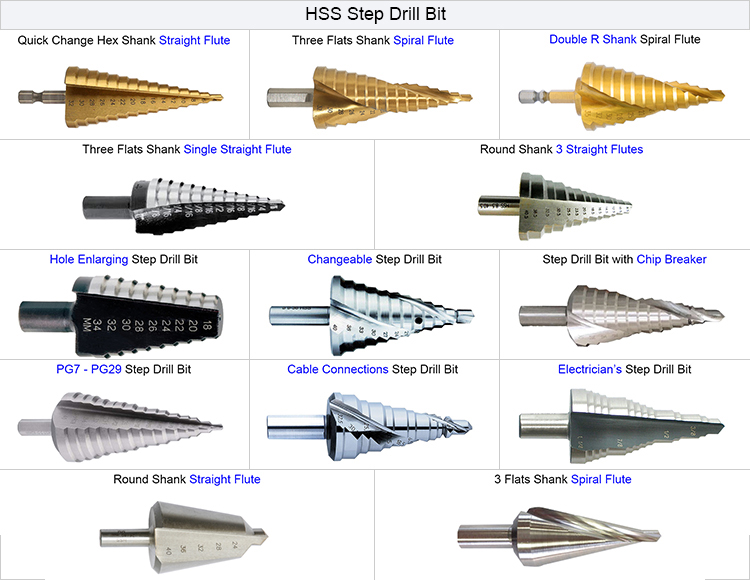

types of hss step drill bits

FEATURES

1. Step drill bits are perfect for drilling and enlarging multiple-holes in thin sections of sheet metals, pipes, plexiglass, plastics, wood up to a thickness of 5mm.
2. 135° Split Point Tip: increases cutting speed with self-centering and the drills do not run off center.
3. A variety of hole diameters can be drilled using only one tool.
4. The dimension of drilled hole is exact.
5. Two Flute Design: provides longer life and better chip removal.
6. The Spiral Groove: creates better, less noise, less force has to be used.

Previous: Hex Shank Quick release HSS Step Drill Bit

Next: Tin-Coated HSS Step Drill Bits with Straight Flute

Metric Size Step Drill Bit
Drilling Range(mm)	Number of Steps	Dia of Steps(mm)	Overall Length(mm)	Shank Dia(mm)
3-12	5	3-6-8-10-12	/	6
3-12	10	3-4-5-6-7-8-9-10-11-12	/	6
3-14	12	3-4-5-6-7-8-9-10-11-12-13-14	/	6
3-14	1	3-14	/	6
4-12	5	4-6-8-10-12	65	6
4-12	9	4-5-6-7-8-9-10-11-12	65	6
4-20	9	4-6-8-10-12-14-16-18-20	75	8
4-22	10	4-6-8-10-12-14-16-18-20-22	80	10
4-30	14	4-6-8-10-12-14-16-18-20-22-2-26-28-30	100	10
4-39	13	4-6-12-15-18-21-24-27-30-33-36-39	107	10
5-13	5	5-7-9-11-13	65	6.35
5-20	1	5-20	/	/
5-25	11	5-7-9-11-13-15-17-19-21-23-25	/	/
5-25	11	5-7-9-11-13-15-17-19-21-23-25	82	9.5
5-35	13	5-13-15-17-19-21-23-25-27-29-31-33-35	82	12.7
6-18	7	6-8-10-12-14-16-18	/	10
6-20	8	6-8-10-12-14-16-18-20	71	9
6-25	7	6-9-12-16-20-22.5-25	65	10
6-30	13	6-8-10-12-14-16-18-20-22-24-26-28-30	100	10
6-32	9	6-9-12-16-20-22.5-25-28.5-32	76	10
6-35	13	6-8-10-13-16-18-20-22-25-28-30-32-35	/	10
6-36	11	6-9-12-15-18-21-24-27-30-33-36	85	10
6-38	12	6-9-13-16-19-21-23-26-29-32-35-38	100	10
6-40	16	6-11-17-23-29-30-31-32-33-34-35-36-37-38- 39-40	105	13
8-20	7	8-10-12-14-16-18-20	/	/
